Product Code: DB90/I
Product Availability: In stock

Fixed In-Ground Defender Bollard Range

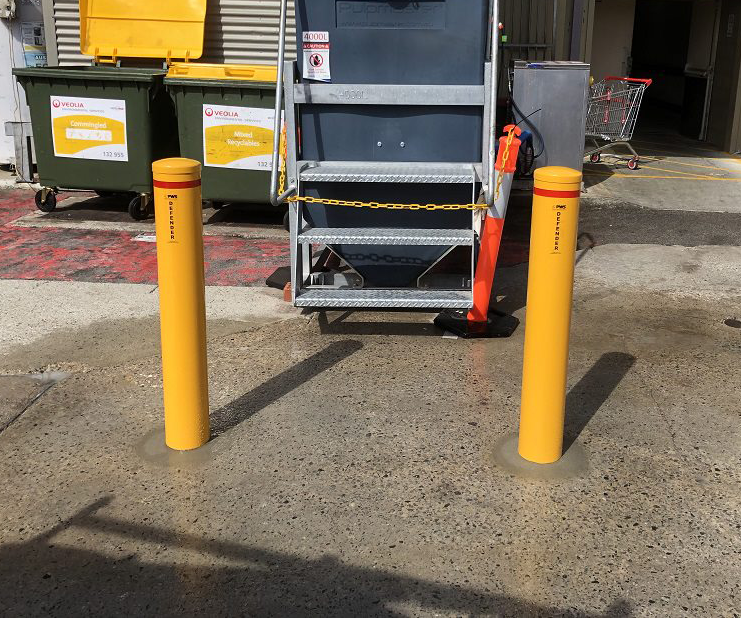

  • Core cutting required for in-Ground installation

  • Manufactured in 90mm, 140mm, and 165mm sizes for all protection needs

  • Red reflective band at top of bollard

  • Hot-dip galvanised for maximum rust protection then powdercoated safety yellow for maximum visibility

  • We use Dulux powdercoat colours for maximum protection against colour fading




We manufacture our bollards to a variety of sizes, using a minimum 4-5mm thick steel pipe to provide comprehensive protection from vehicle collisions. All our bollards are finished in a highly visible, safety yellow powder coat, but are available in other finishes.

Our 90mm diameter bollards are ideal for car parks, fire exits, ram-raid and light industrial applications.

Our 140mm and 165mm diameter bollards are suited to loading docks, freight yards, bus depots and applications where heavy vehicles are present.



Part No.s

Description
DB90/I 90mm diameter in-ground bollard
DB140/I 140mm diameter in-ground bollard
DB165/I 165mm diameter in-ground bollard
DB219/I 219mm diameter in-ground bollard
Product Specifications

Diameter Product Height Wall Thickness In-Ground Depth Installed Height
DB90/I 90mm 1240mm 4mm 300mm 940mm
DB140/I 140mm 1500mm 5mm 400mm 1100mm
DB165/I 165mm 1500mm 5mm 400mm 1100mm
DB219/I 219mm 1500mm 5mm 400mm 1100mm
Download
Call us at 1300 76 44 77 or fill in your information and we will reply promptly with your quote
